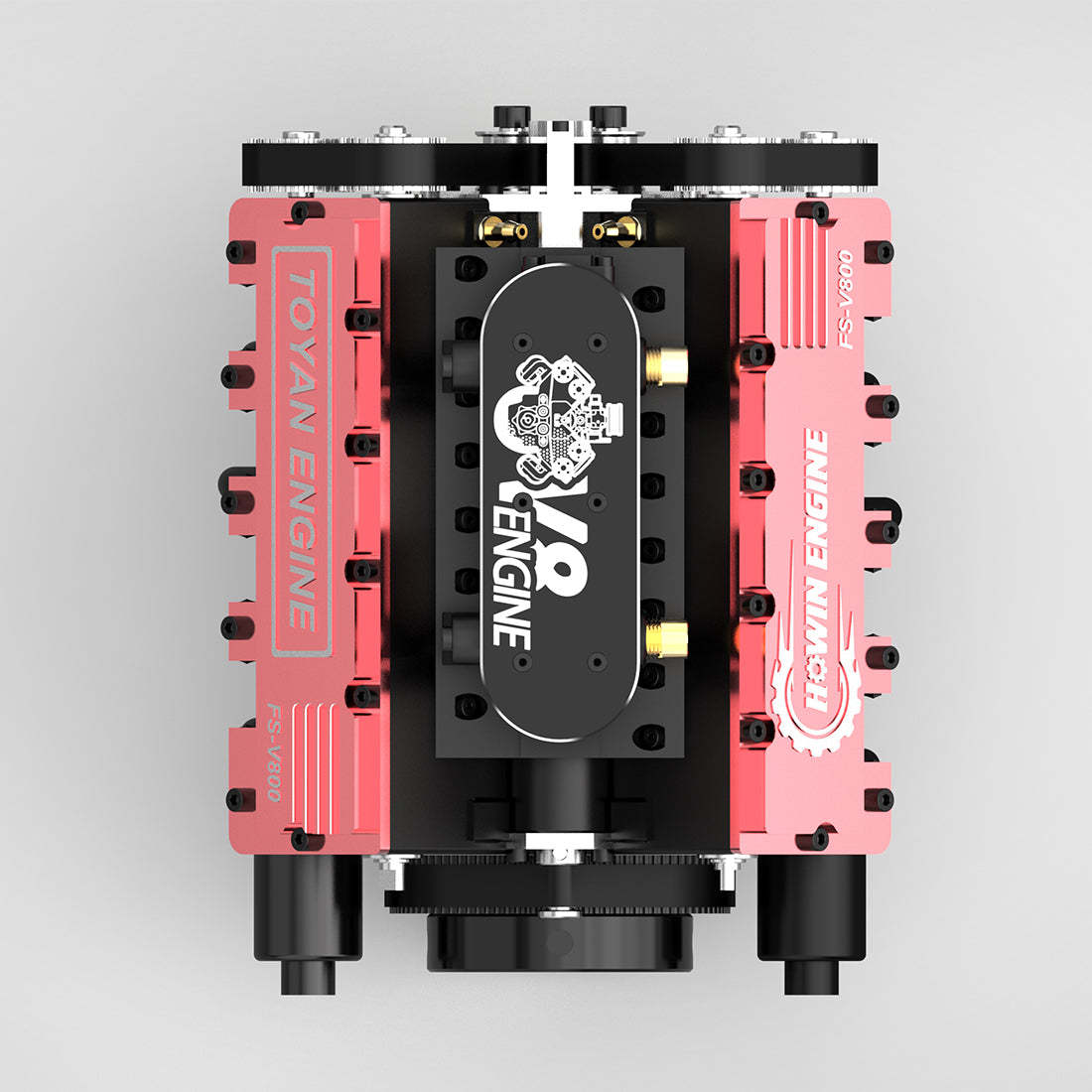

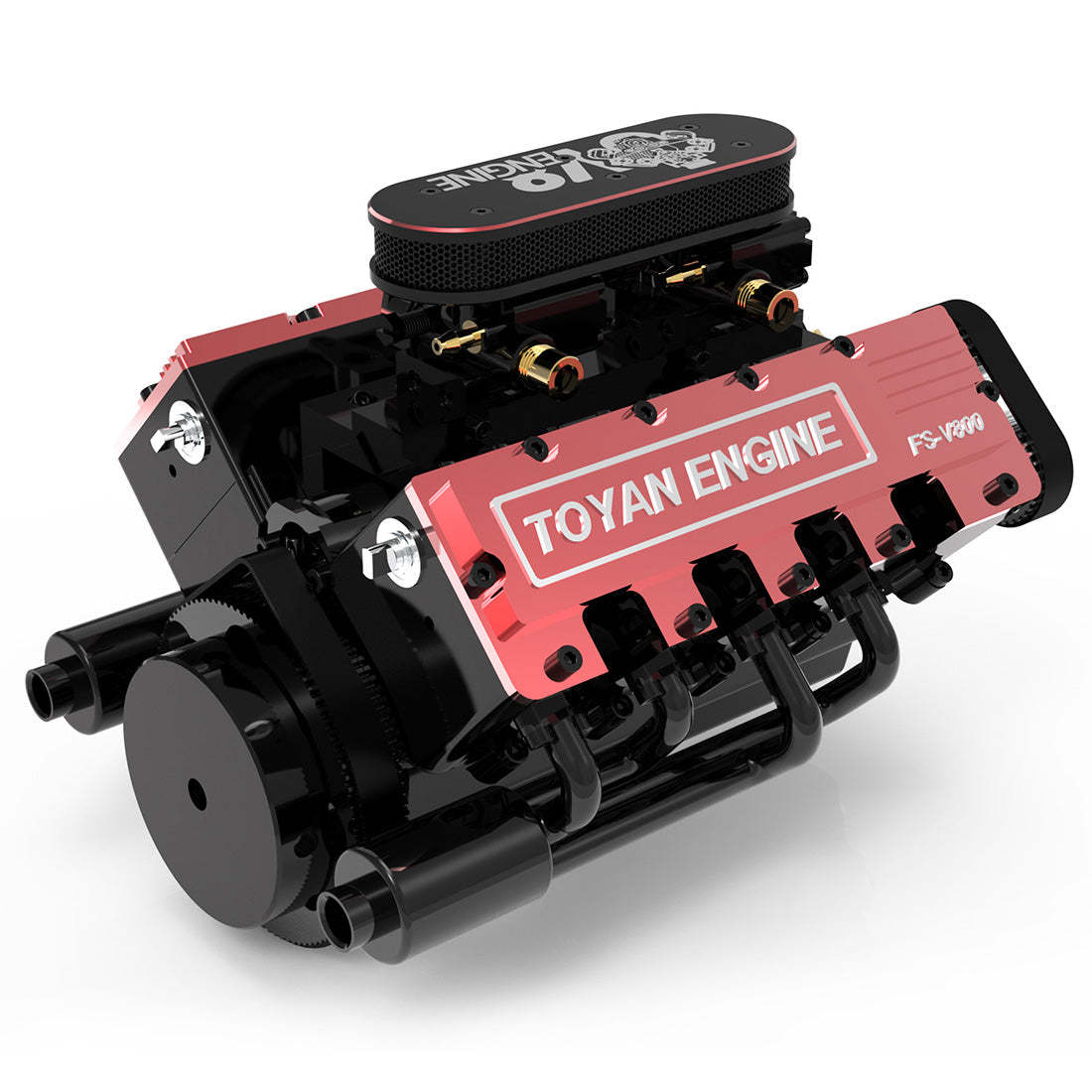

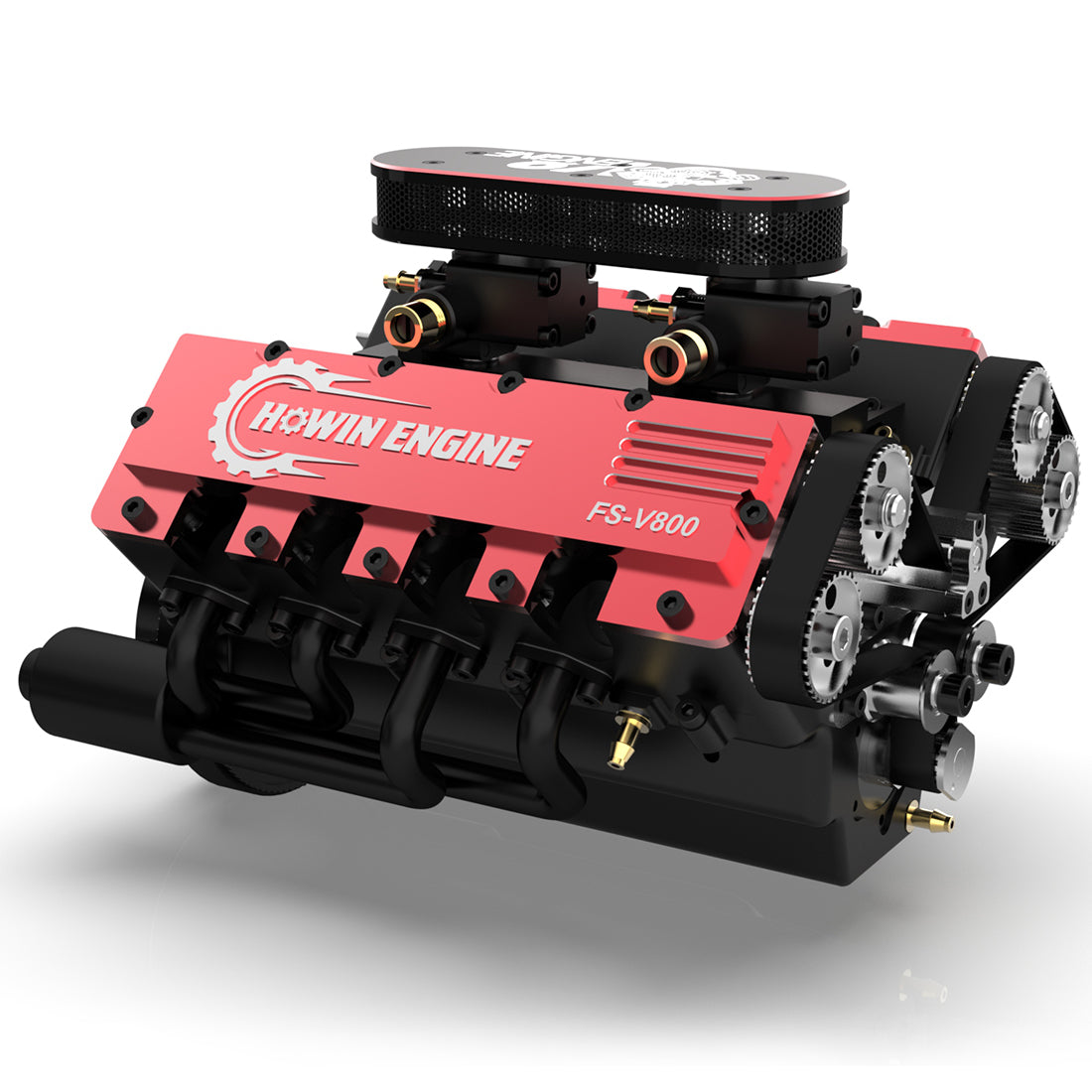

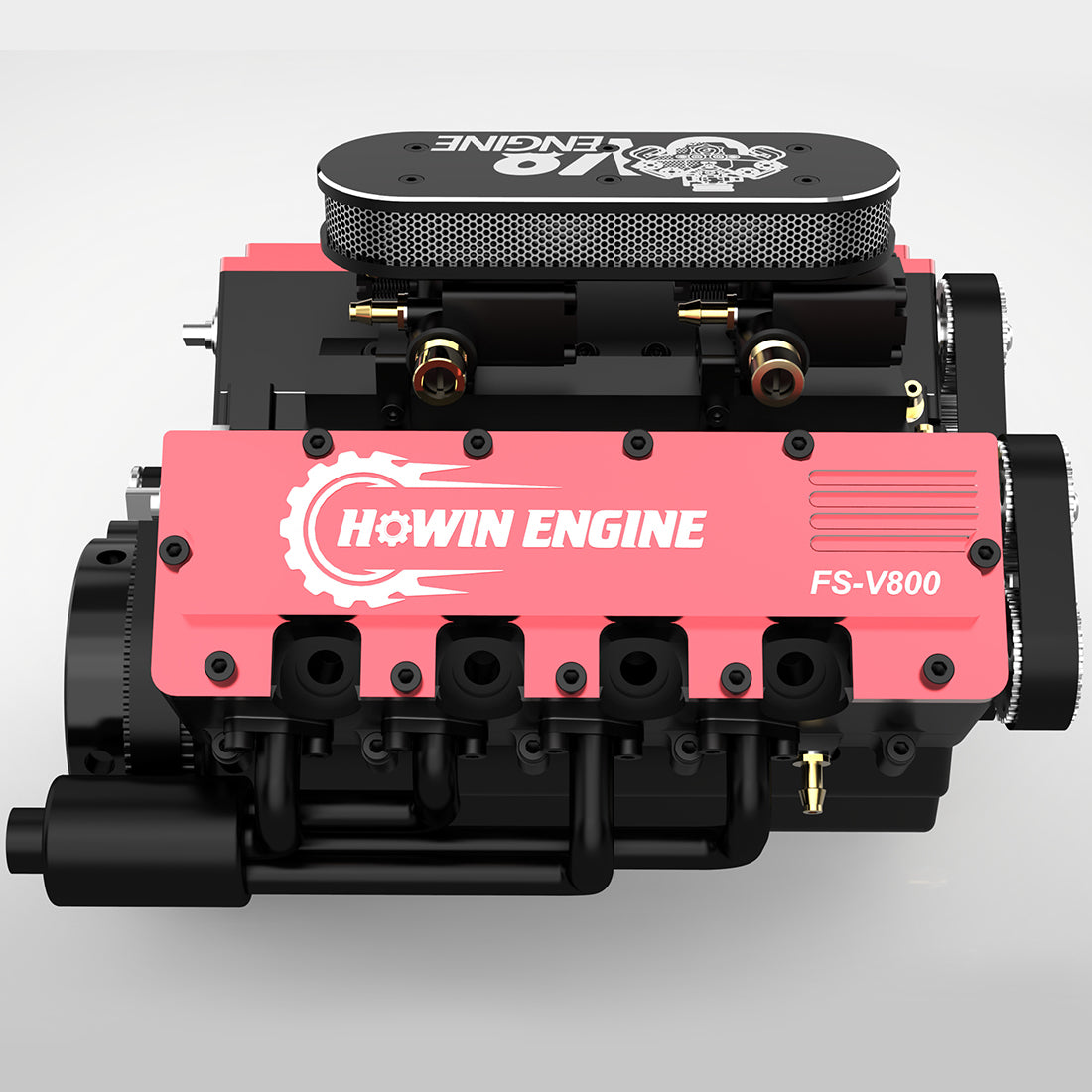

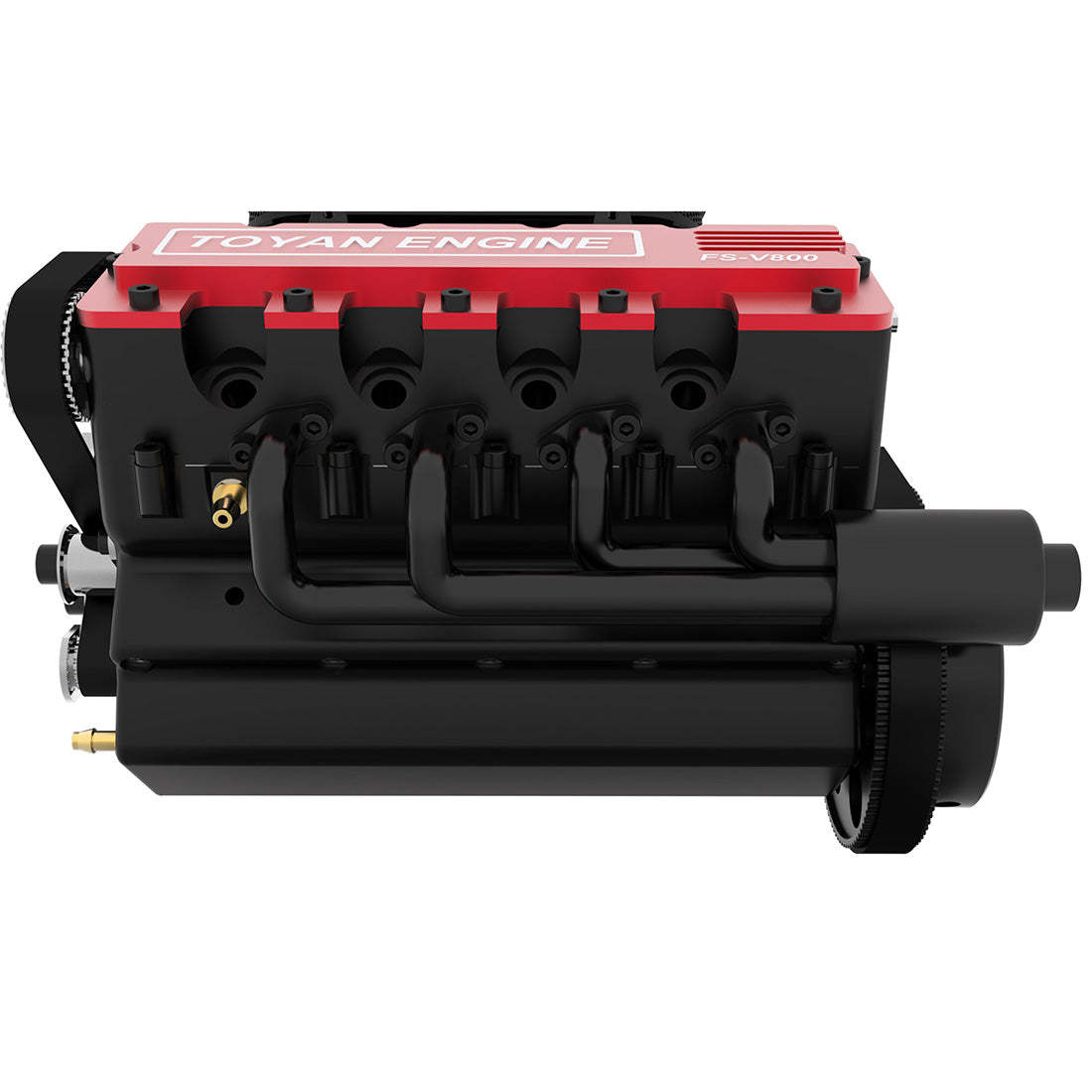

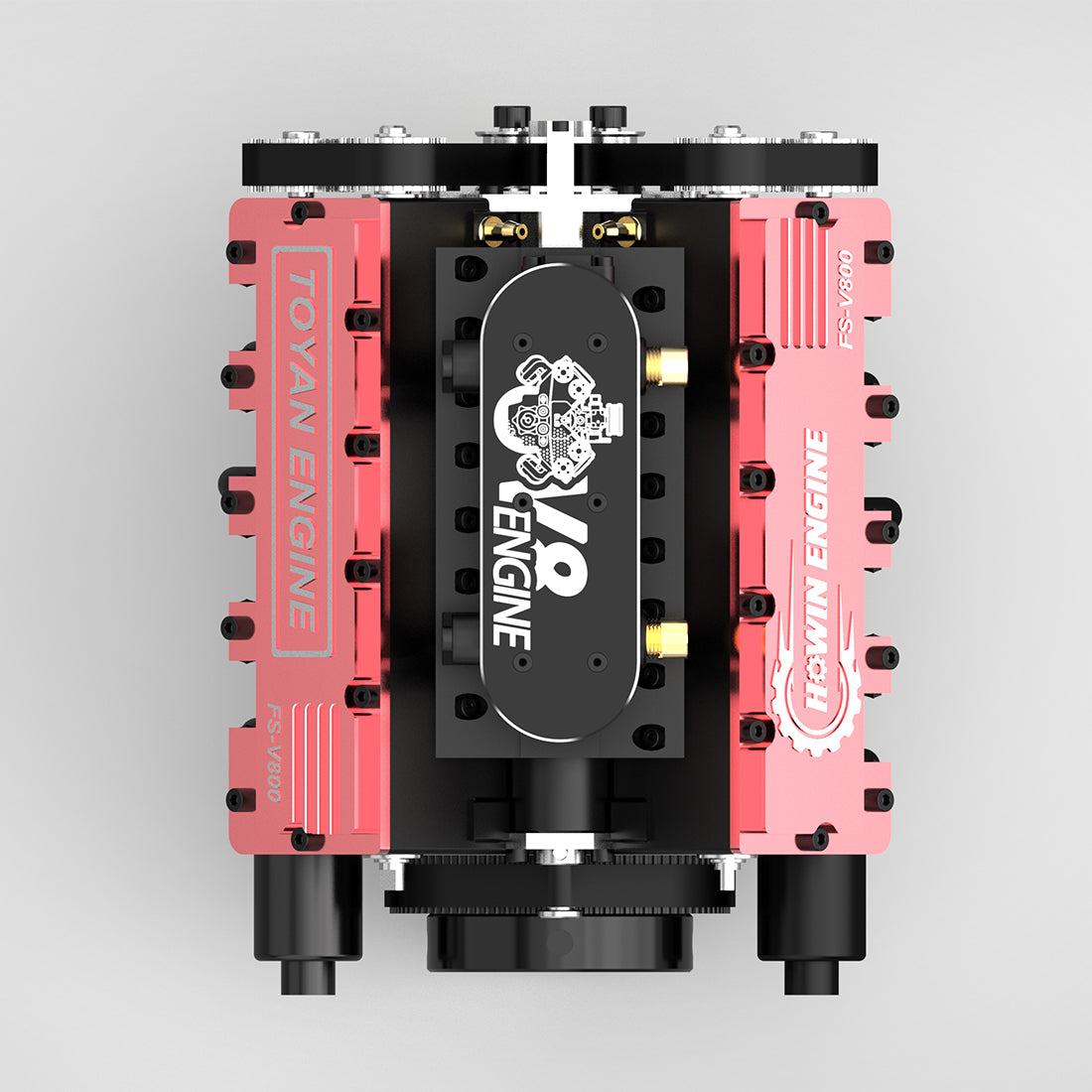

Tothtyan V8 FS-V800 28cc Engine RTR Nitro Engine Model Kits
We ship directly from the manufacturer, there are no distributors, and the prices are low.
Full refund within 30 days without cause.
5-year warranty on all machines
- Download your for instructionTothtyan FS-V800.
We produce only 500pcs supercharger this time. the ealier you place the order, the ealier you can receive it. when the first 50pcs are sold out, the price will arise. Thanks again for your understanding.
Features:

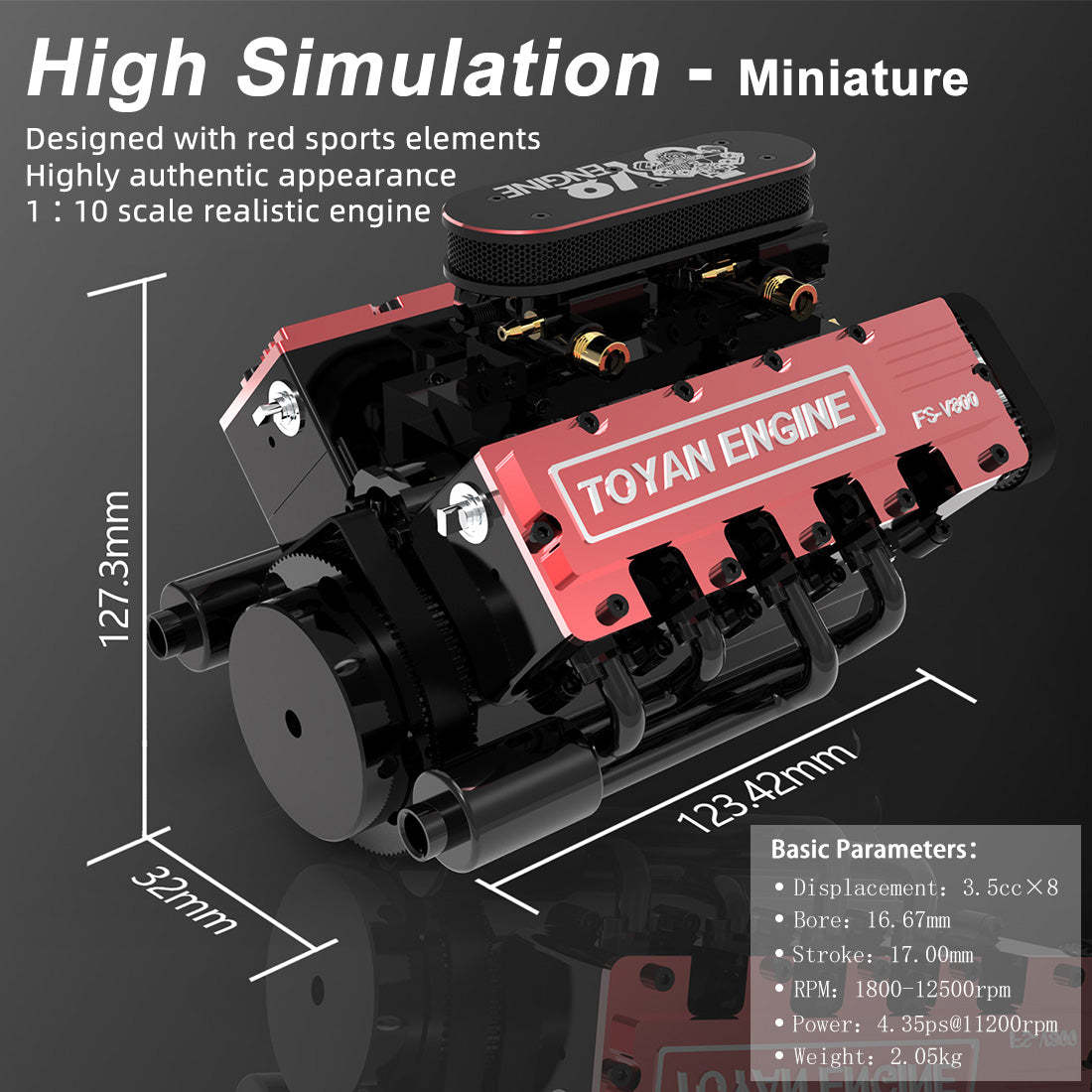

Miniature & Simulated: The 1/10 scale realistic miniature V8 internal-combustion engine with racing-like appearance and red sport element is authentically simulated.

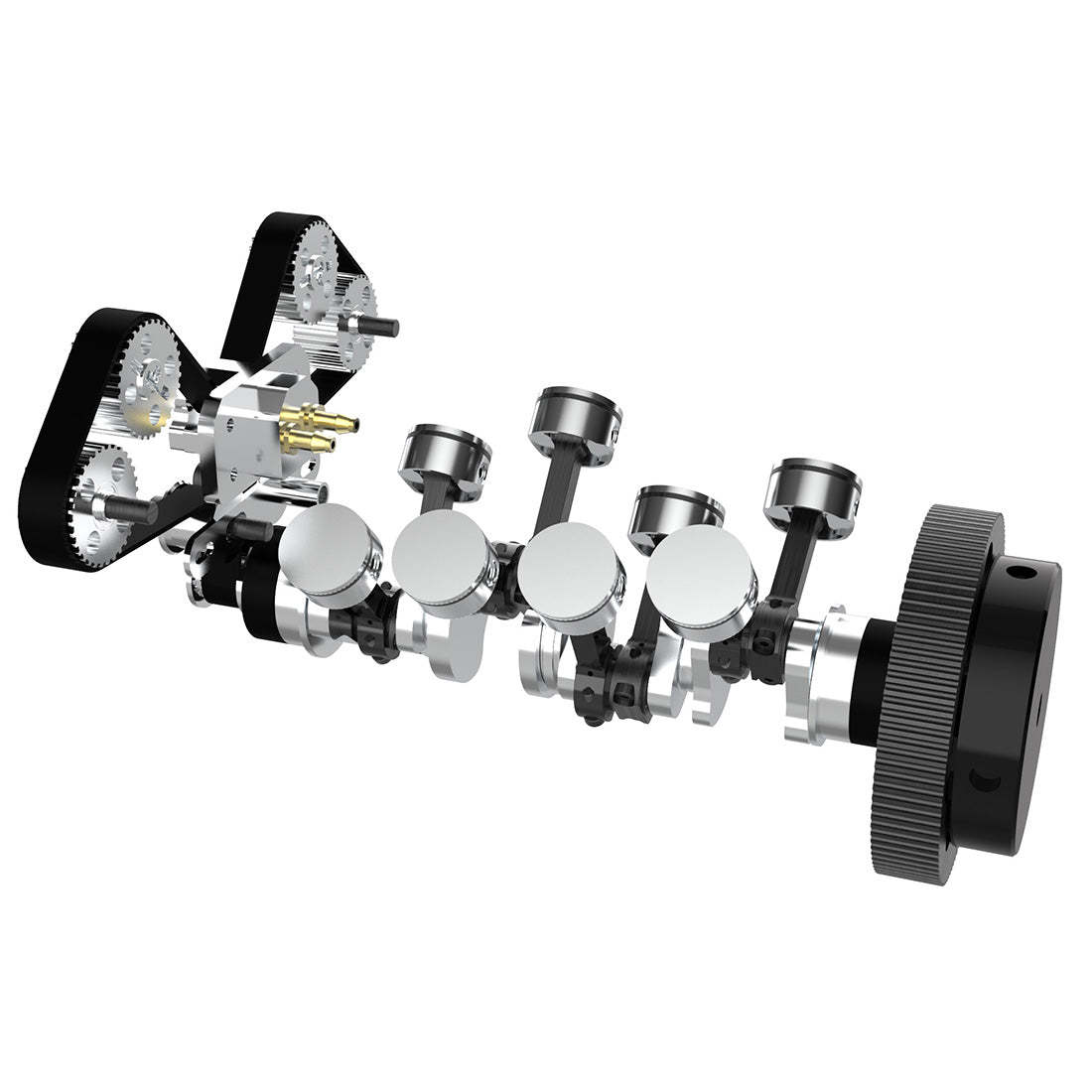

Long Stroke: Take long stroke as the engine design blueprint, it effectively provides higher torque. And the customized flexible oil seal ensures excellent sealing performance in high speed operation.

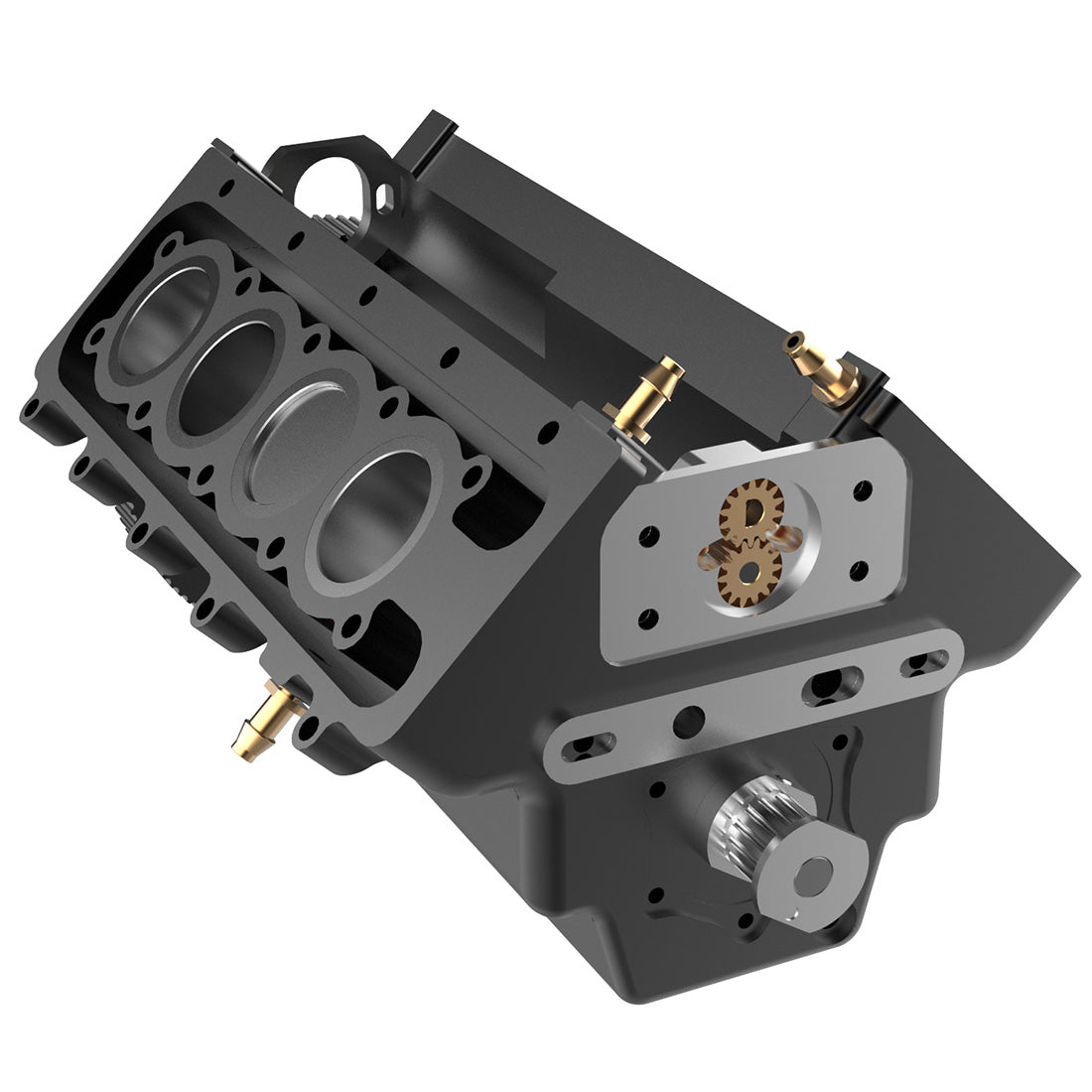

Mechanical Water Cooling: The engine is built in a mechanical water cooling pump whose power derives from the crankshaft, which provides circulation power for the coolant and is able to combine the cooling fan for strengthened self-cooling performance.

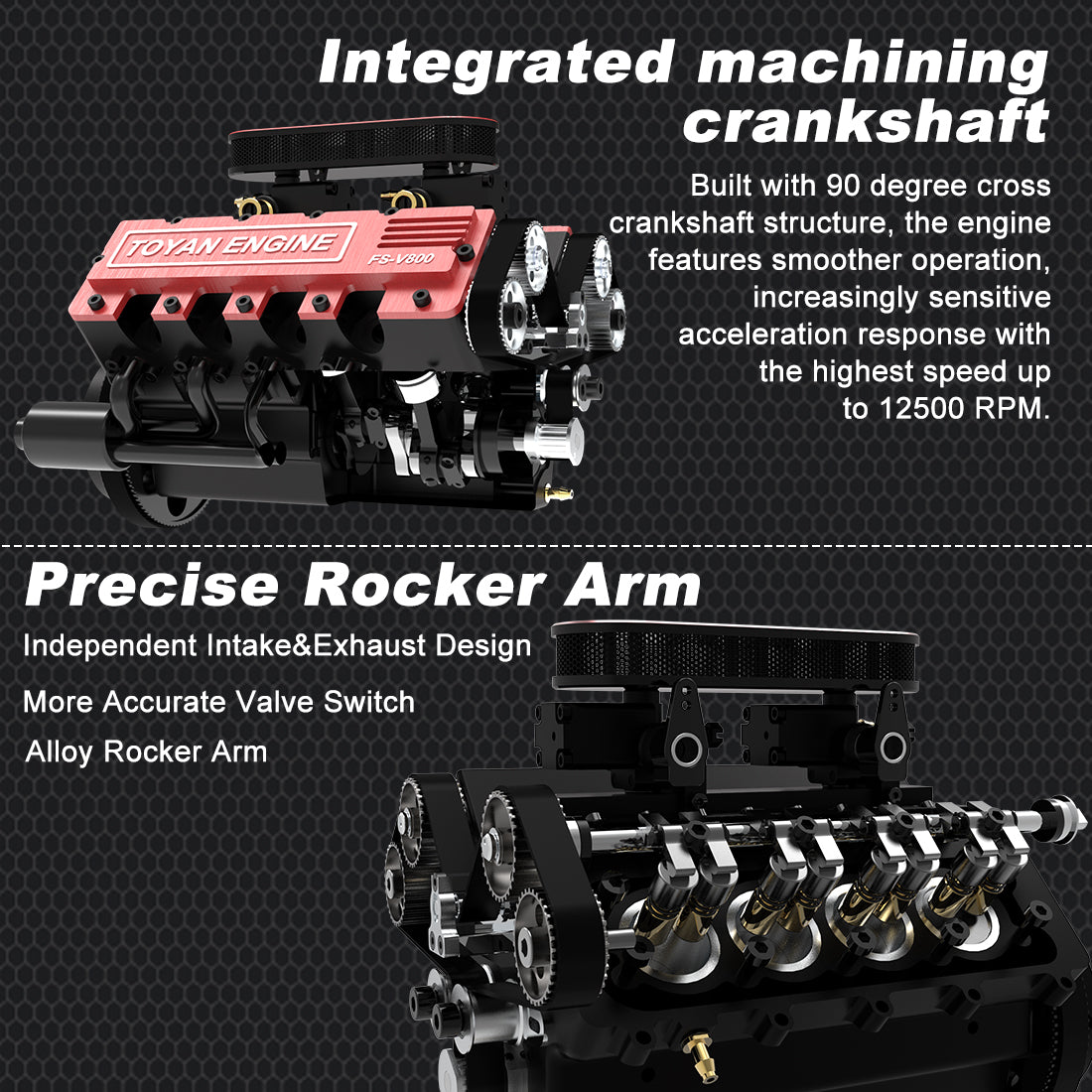

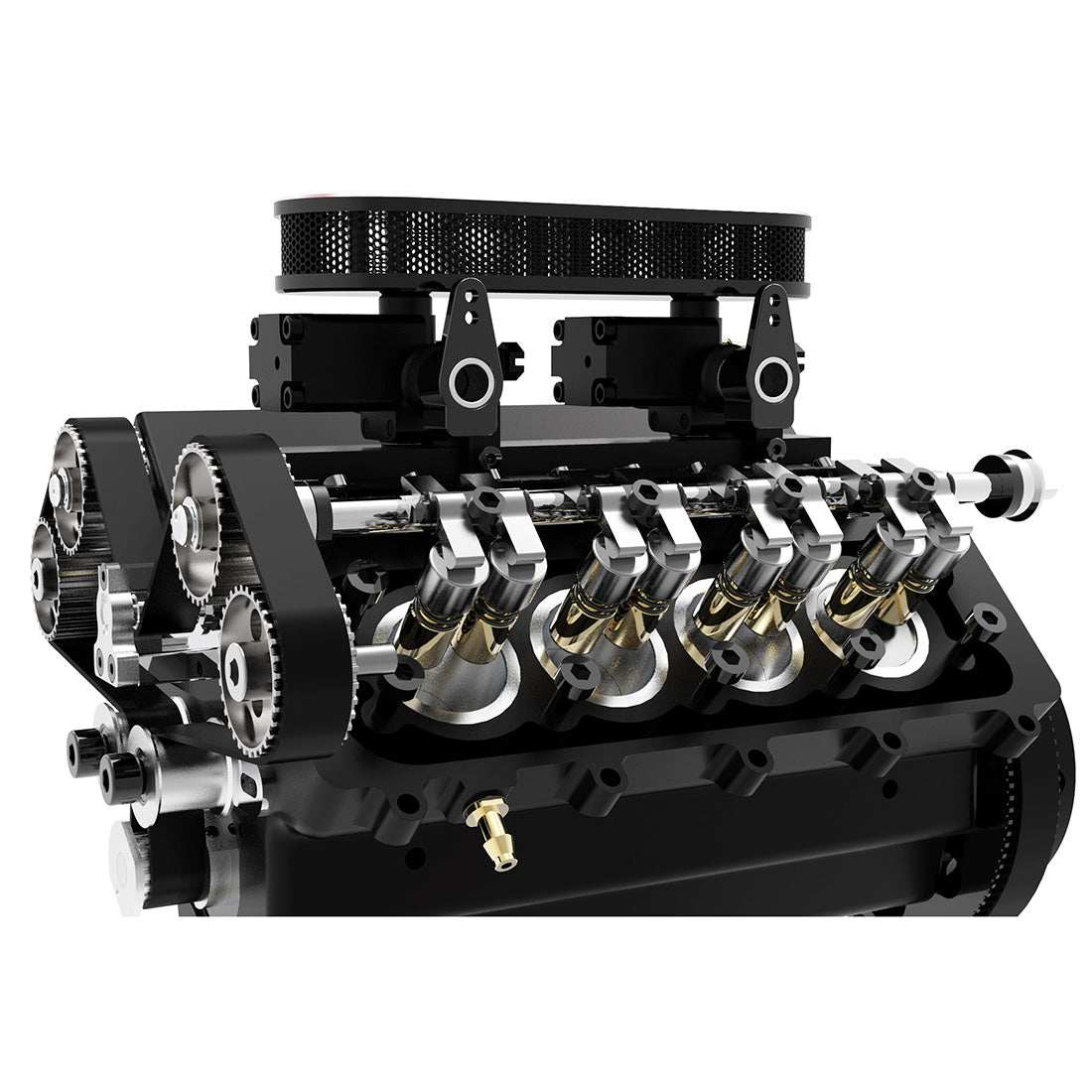

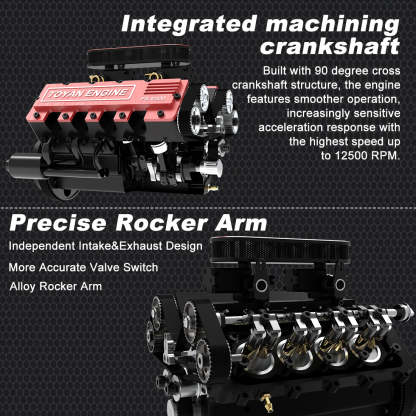

Precise Rocker Arm: With alloy rocker arm and independent intake & exhaust design, the valve switch operation will be more accurate.

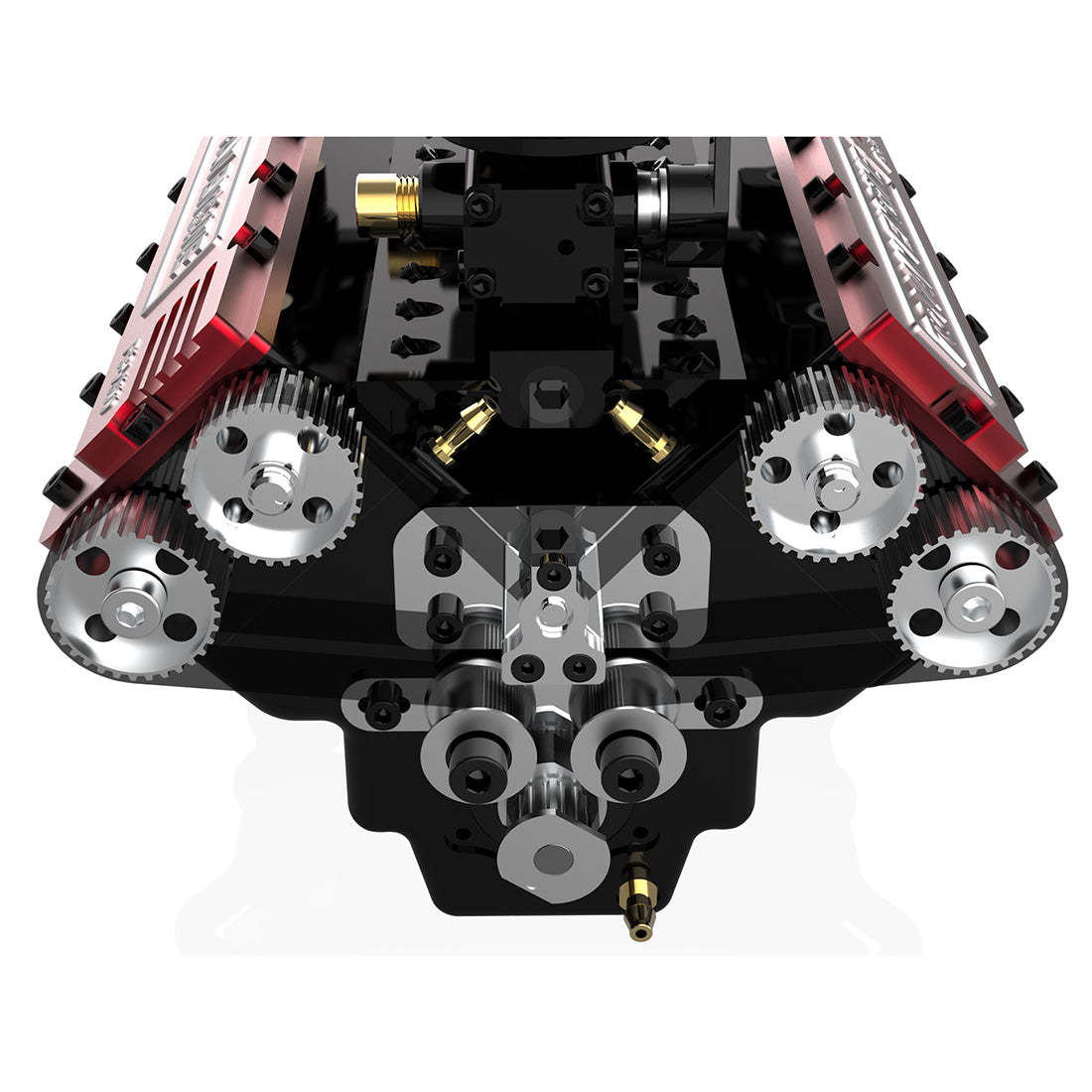

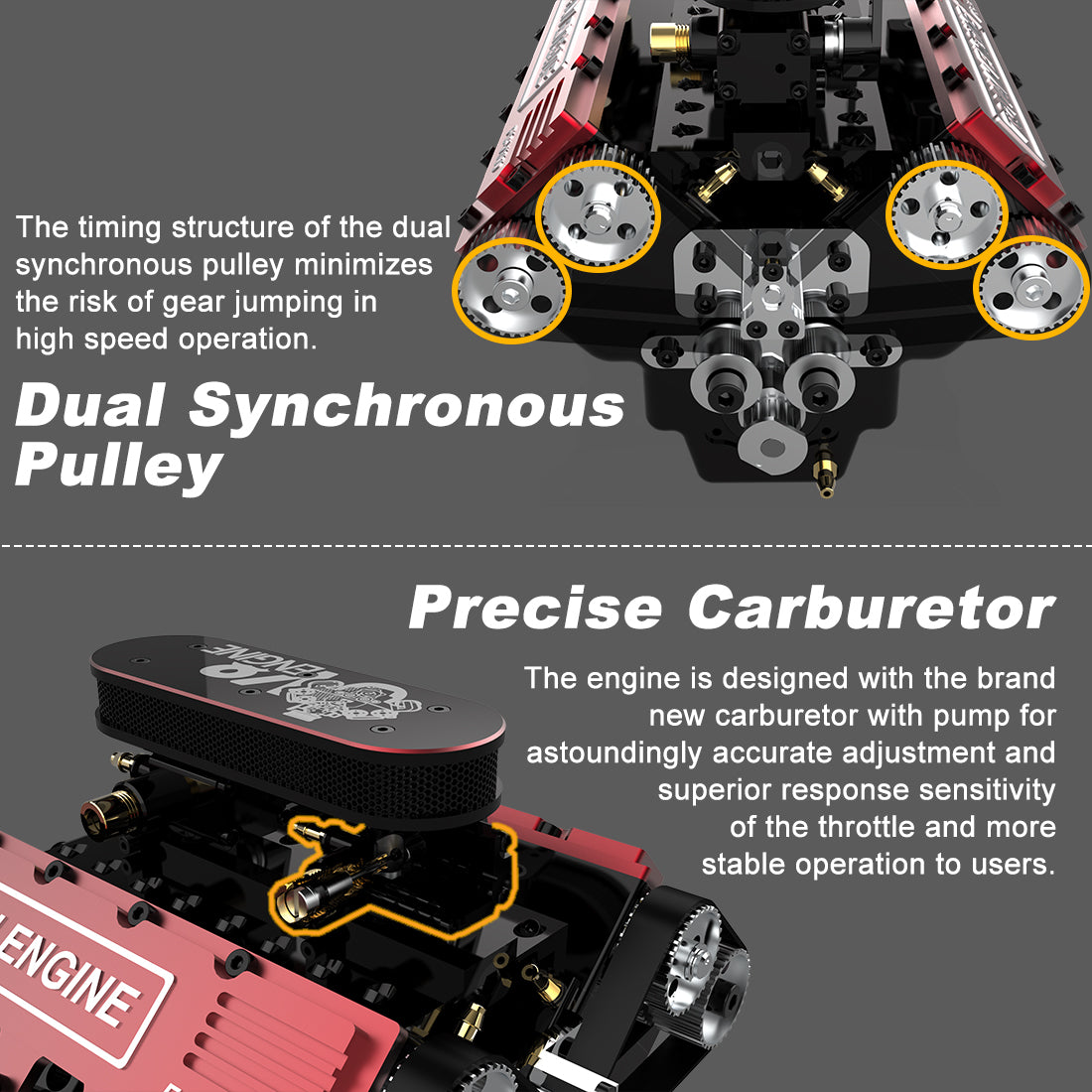

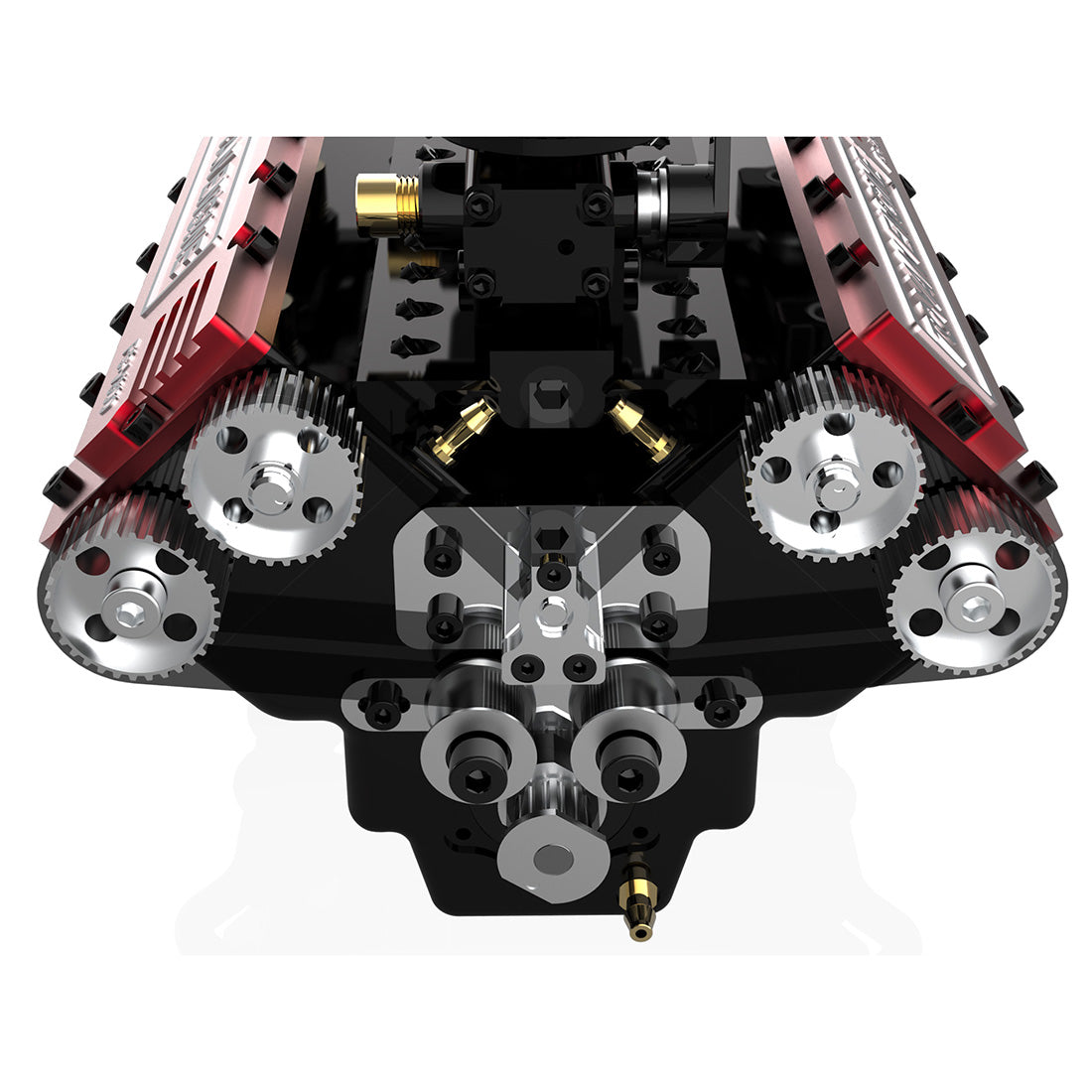

Dual Synchronous Belt Pulley: The timing structure of dual synchronous belt pulley greatly reduces the risk of gear jumping in high speed operation.

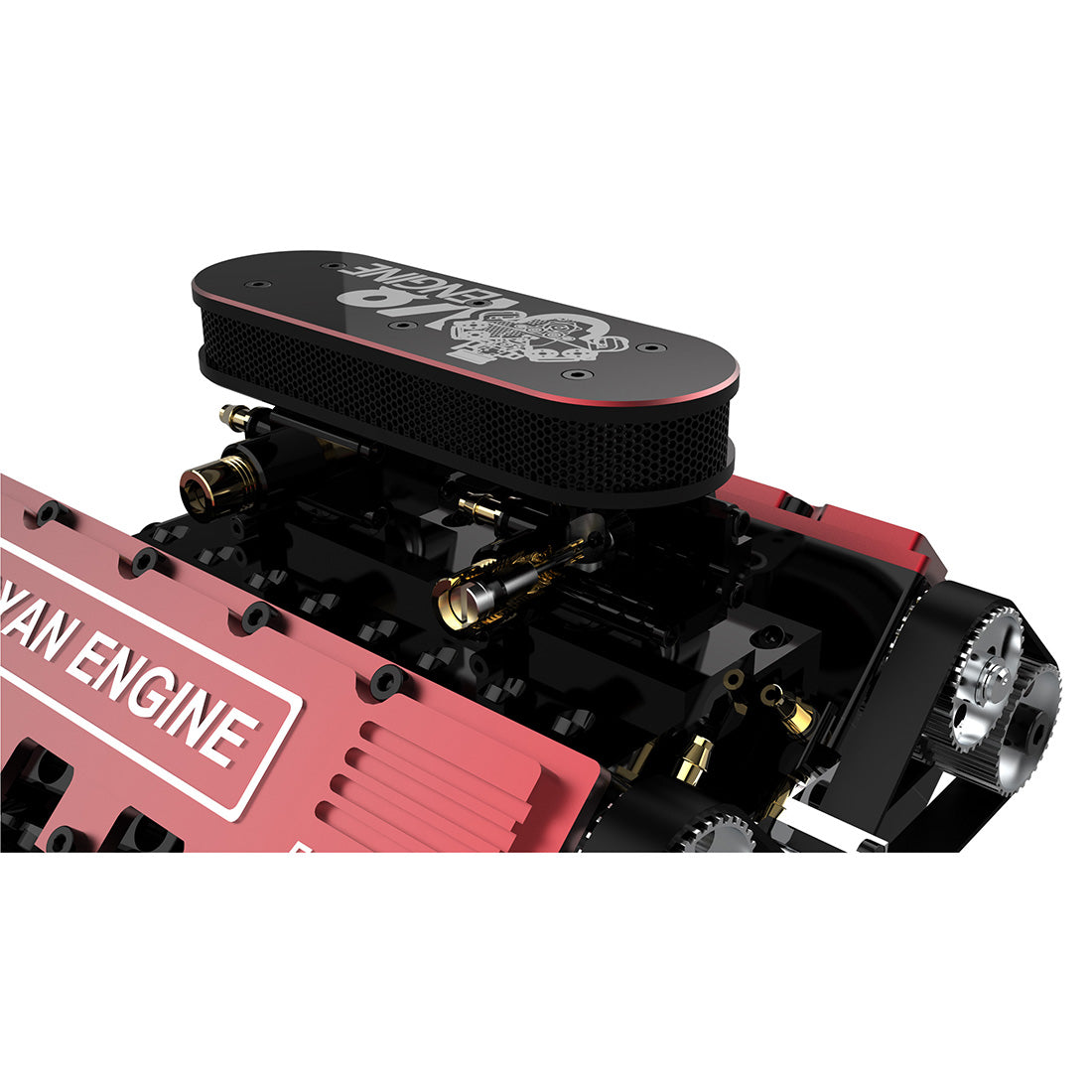

Accurate Carburetor: Enjoy more accurate adjustment, more sensitive throttle response and more stable performance thanks to the brand new dual carburetor with pump.

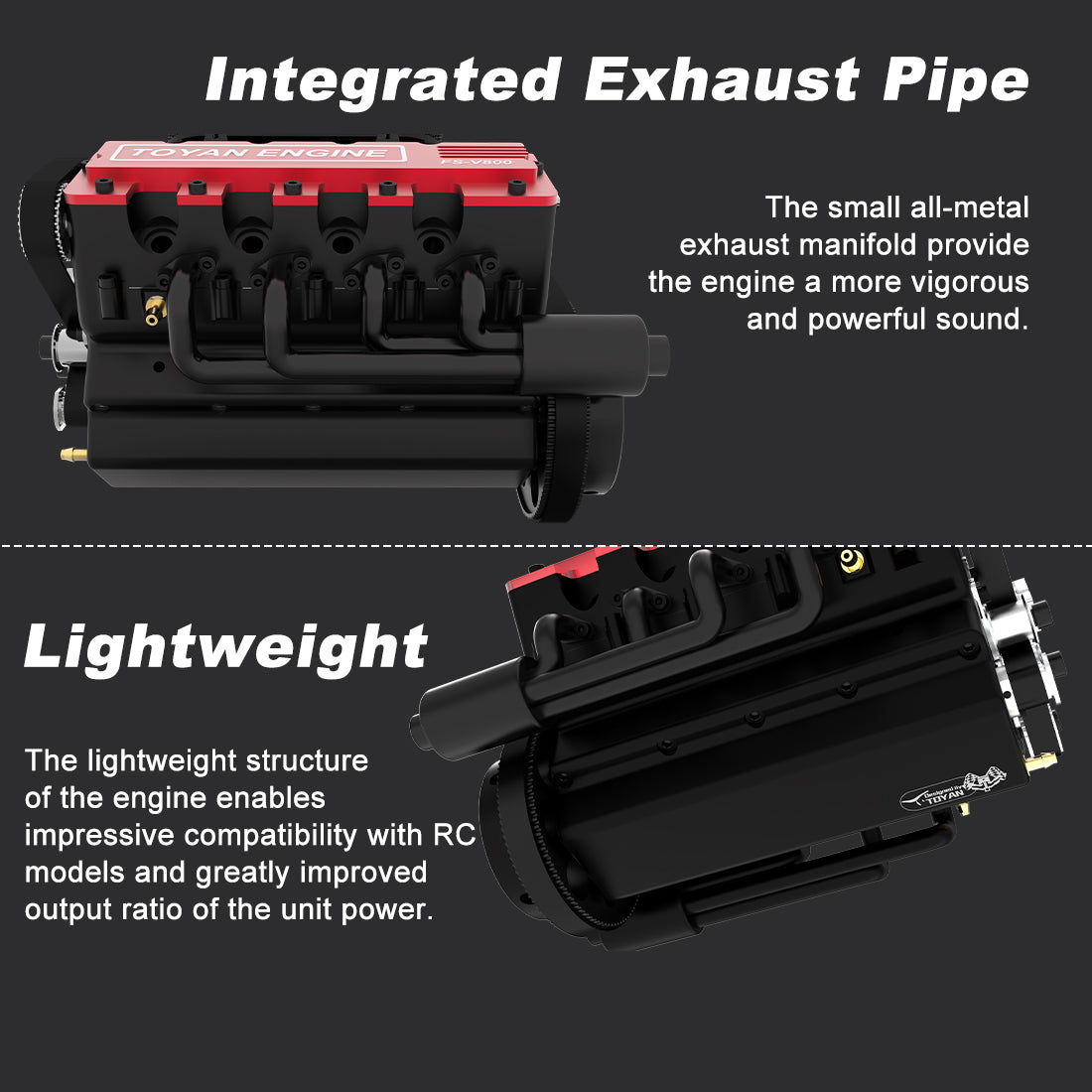

Integrated Exhaust Manifold: The small all-metal integrated exhaust manifold shaped by difficult processing technology makes V8 engine sound more powerful.
Lightweight: The compact design makes the product perfectly compatible with RC models, drastically improving the unit power output ratio.

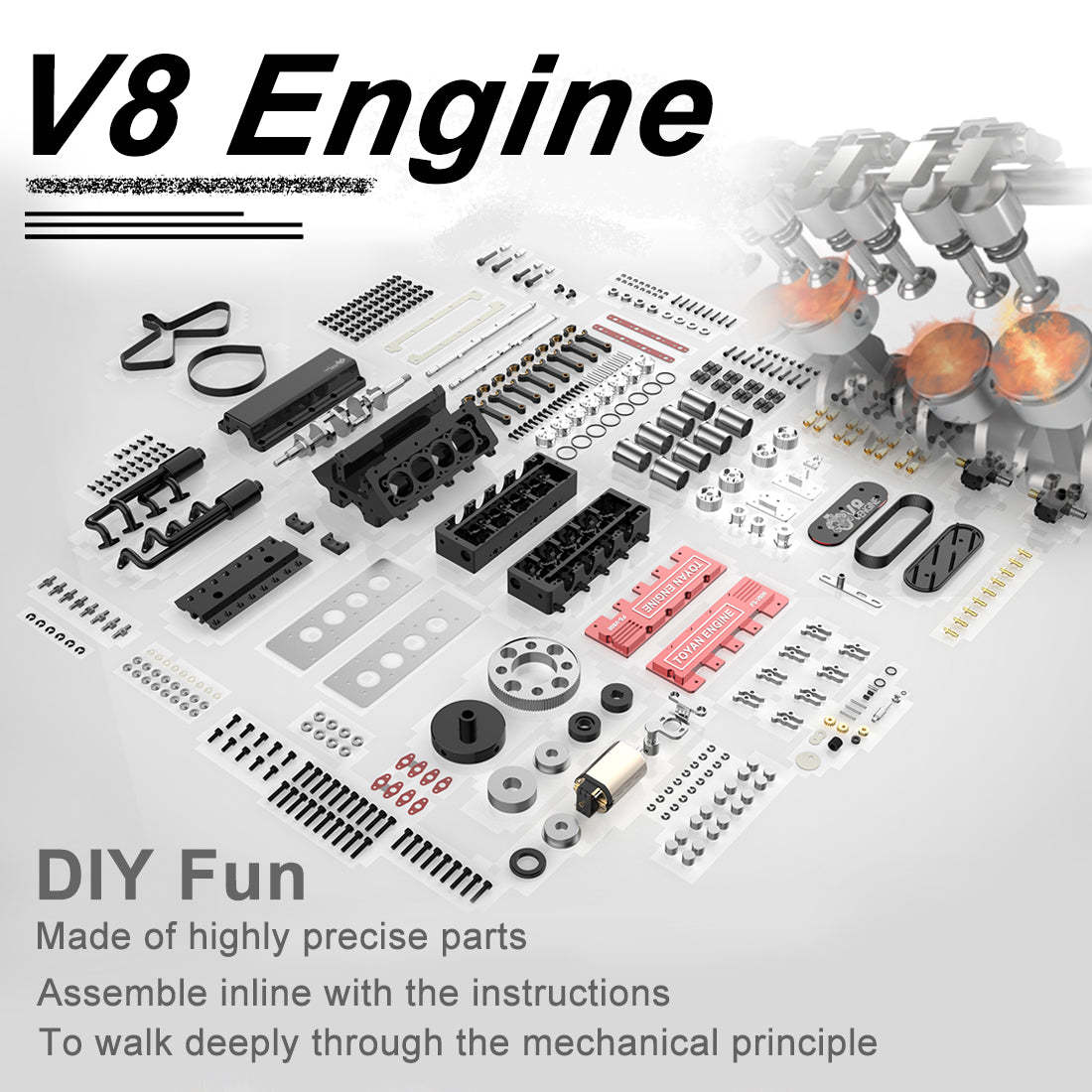

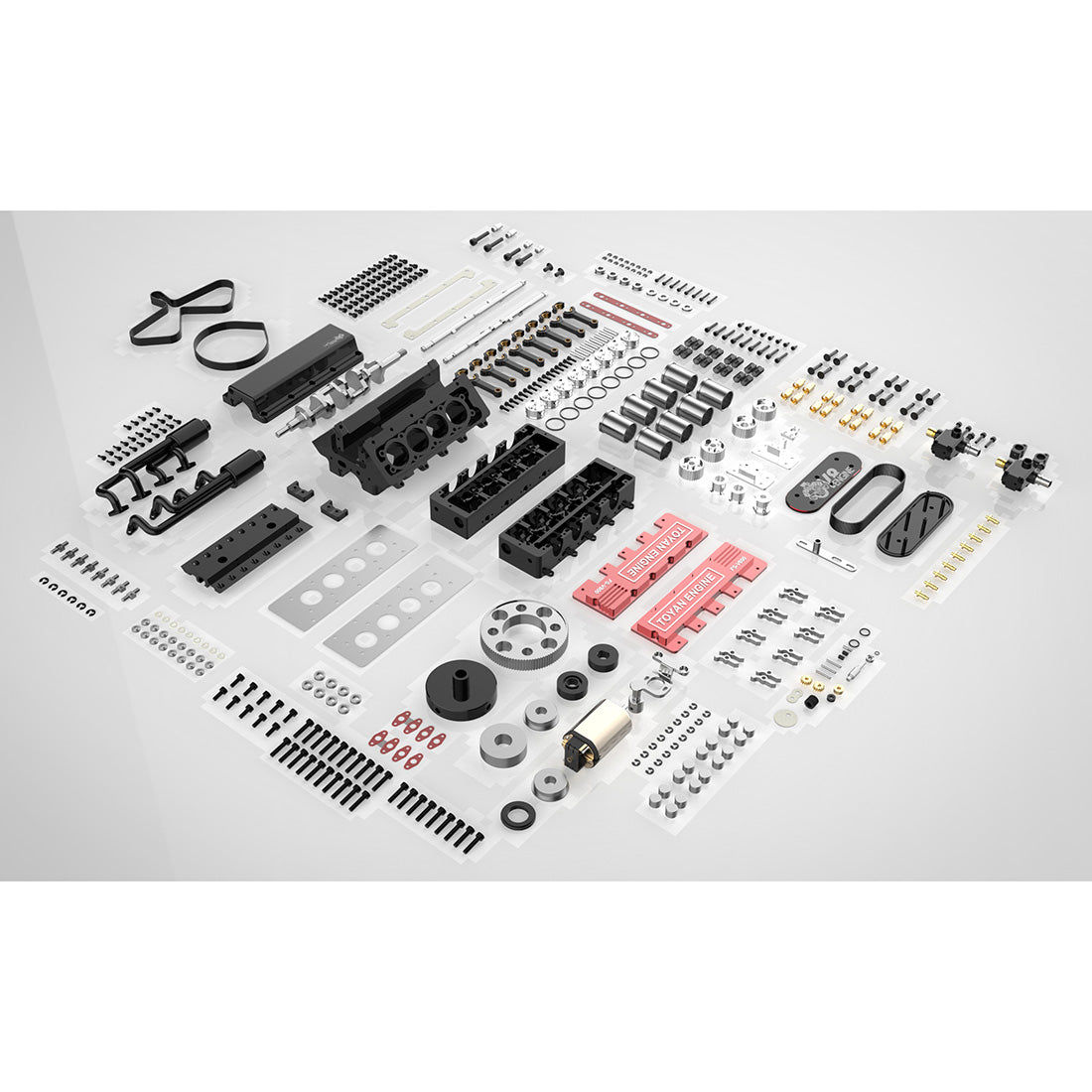

DIY: Crafted from ultra-precise components, the engine model gives strong mechanical sense, enables smooth assembly experience and provide users with fun, helping to build their own V8 engines.
Wide Applications: The product makes a superb desktop power engine model to play, a tool for RC model cars or boats modification, a teaching aid for physical mechanical experiments and a high-end holiday gift for model enthusiasts.
Specifications:
.Material: Metal

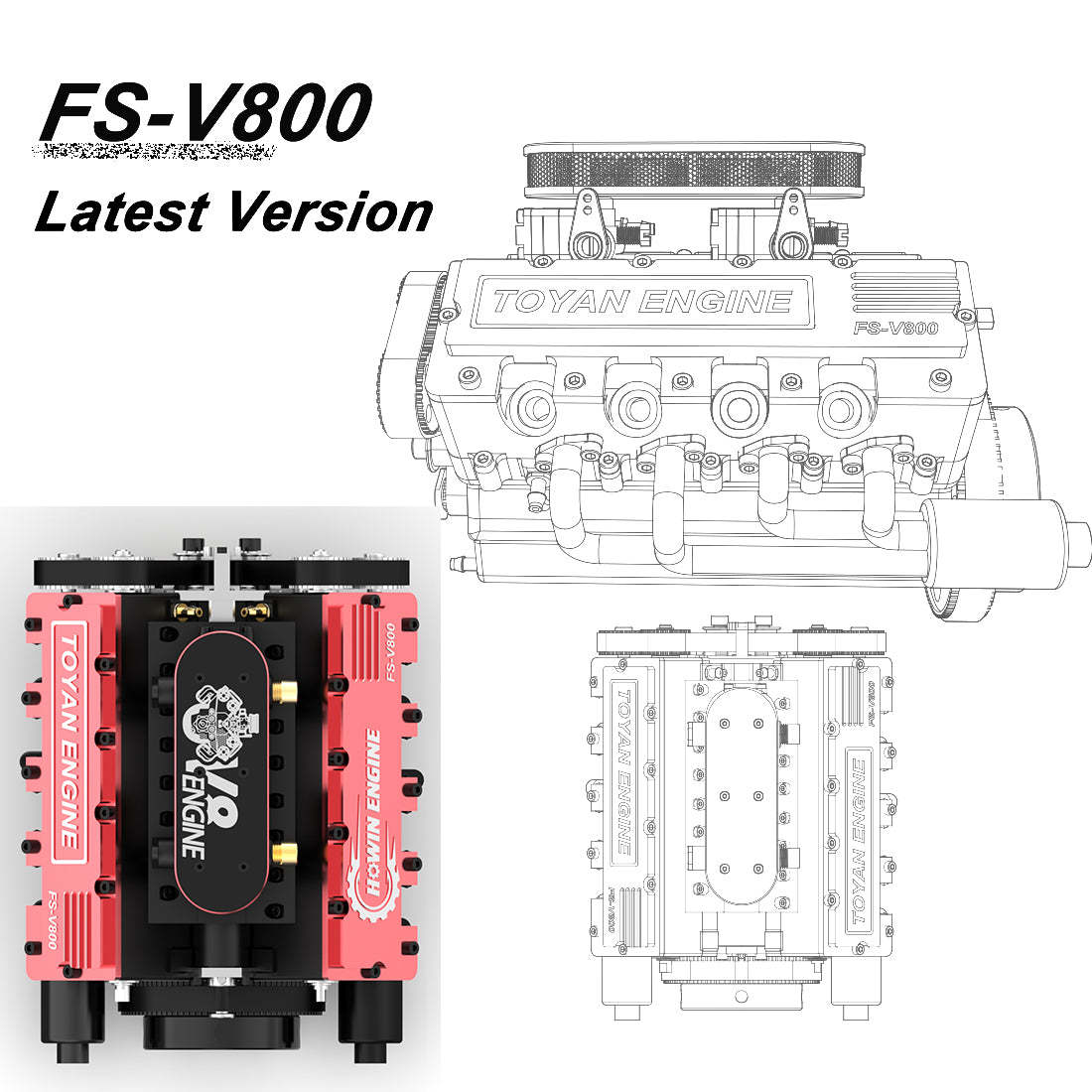

.Model: FS-V800

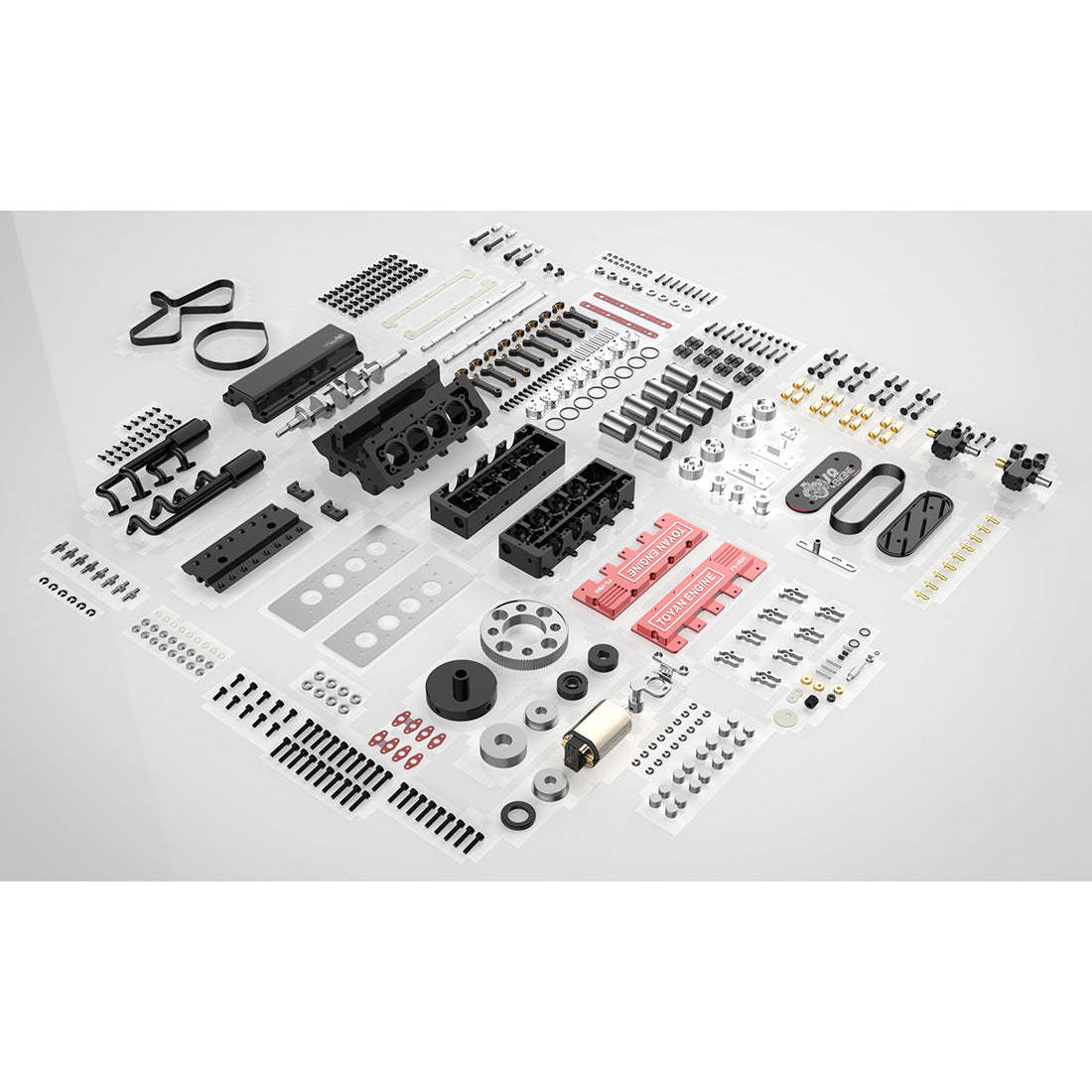

.Form: KIT parts version
.Scale: 1/10
.Cylinder: V-type eight cylinder
.Stroke: four stroke
.Displacement: 28(3.5*8)cc
.Core: 16.67mm
.Stroke: 17.00mm
.Angle: 90°
.Speed: 1800-12500rpm
.Power: 4.35ps@11200rpm
.Cooling Mode: water cooling
.Starting Mode: electric (including starting motor)
.Ignition Mode: 2 four-in-one (or eight-in-one) stabilized ignition modules
.Type of Electric Plug: F-type four-stroke electric plug
.Lubrication Mode: splash lubrication (add a small amount of grease on the cam)
.Fuel Type: 20-25% nitro fuel
.Starting Voltage: 7.4V lithium battery (not included)
.Product Dimensions: 12.34 x 3.2 x 12.73cm
.Product Weight: 2050g
.Package Dimensions: 17 x 15 x 4cm
.Package Weight: 2950g

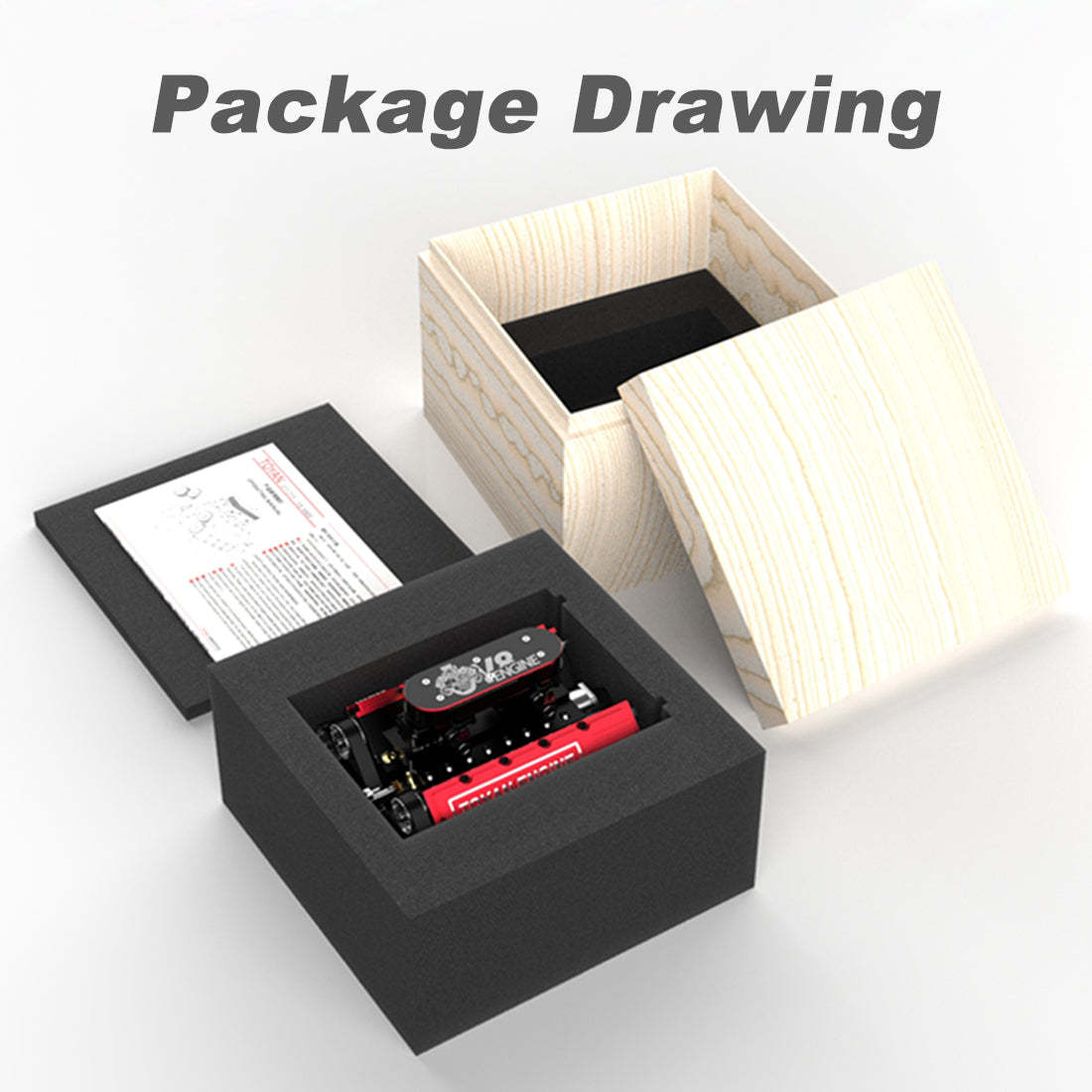

.Packing: Bamboo Gift Box
.Engine Kit * 1Set
.User Manual * 1

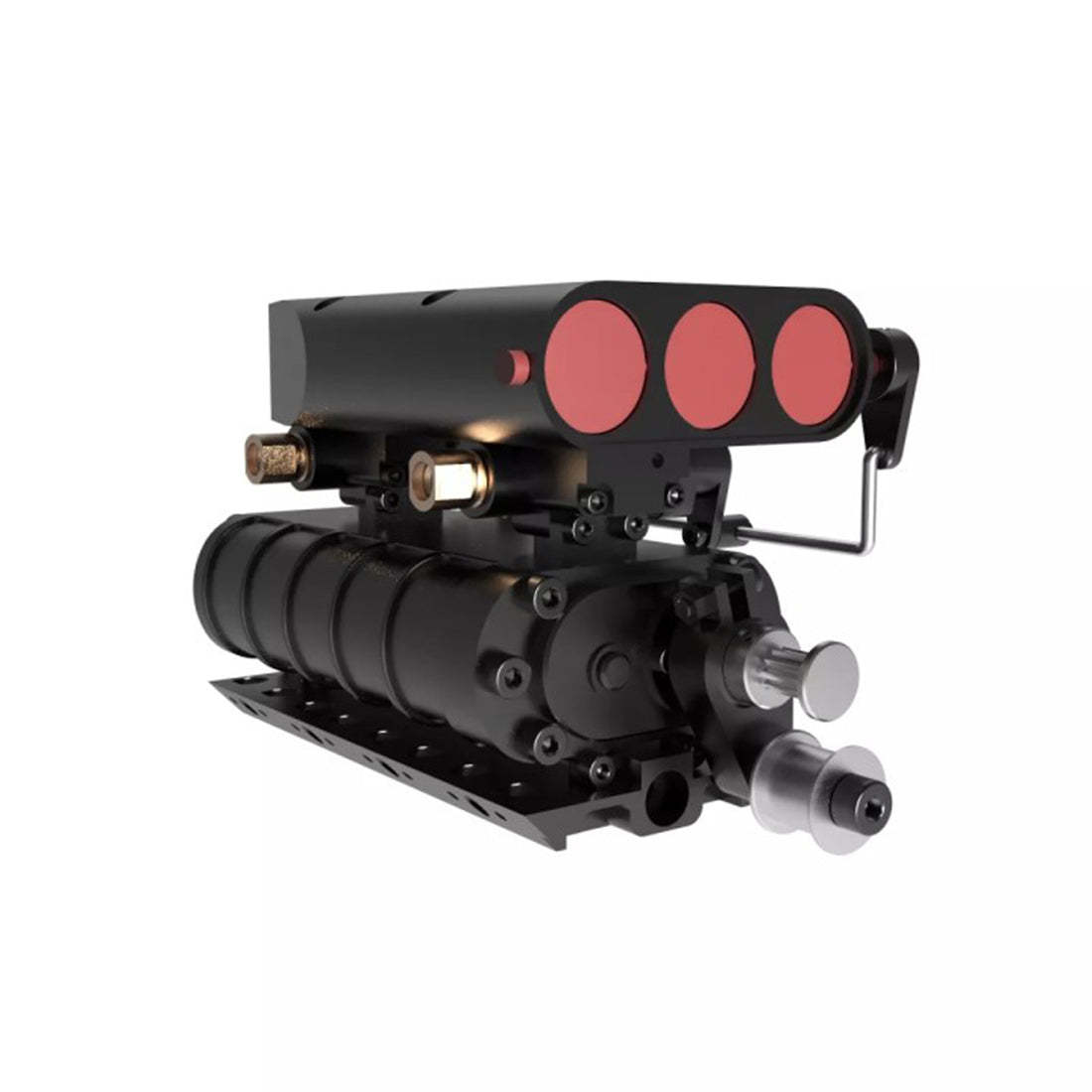

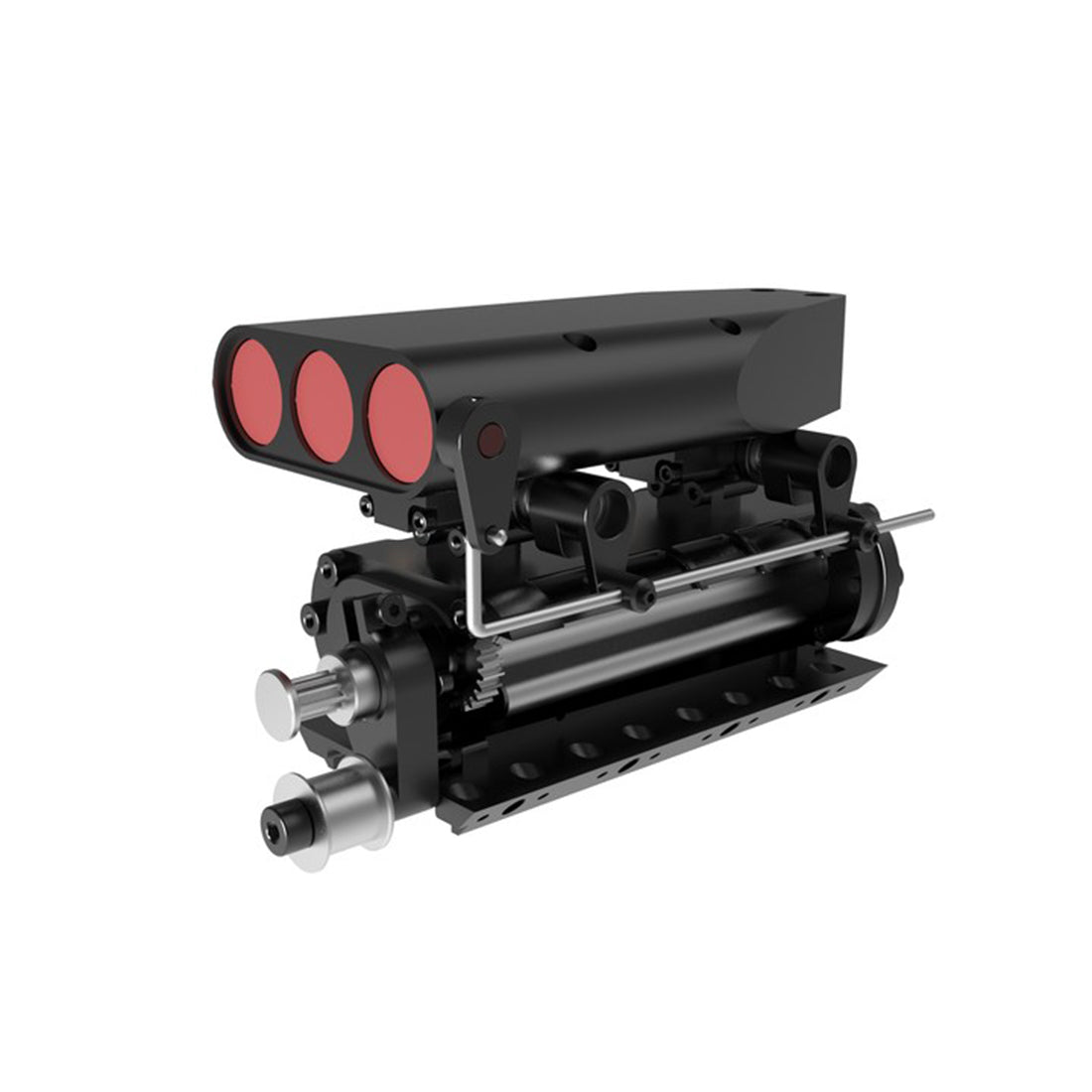

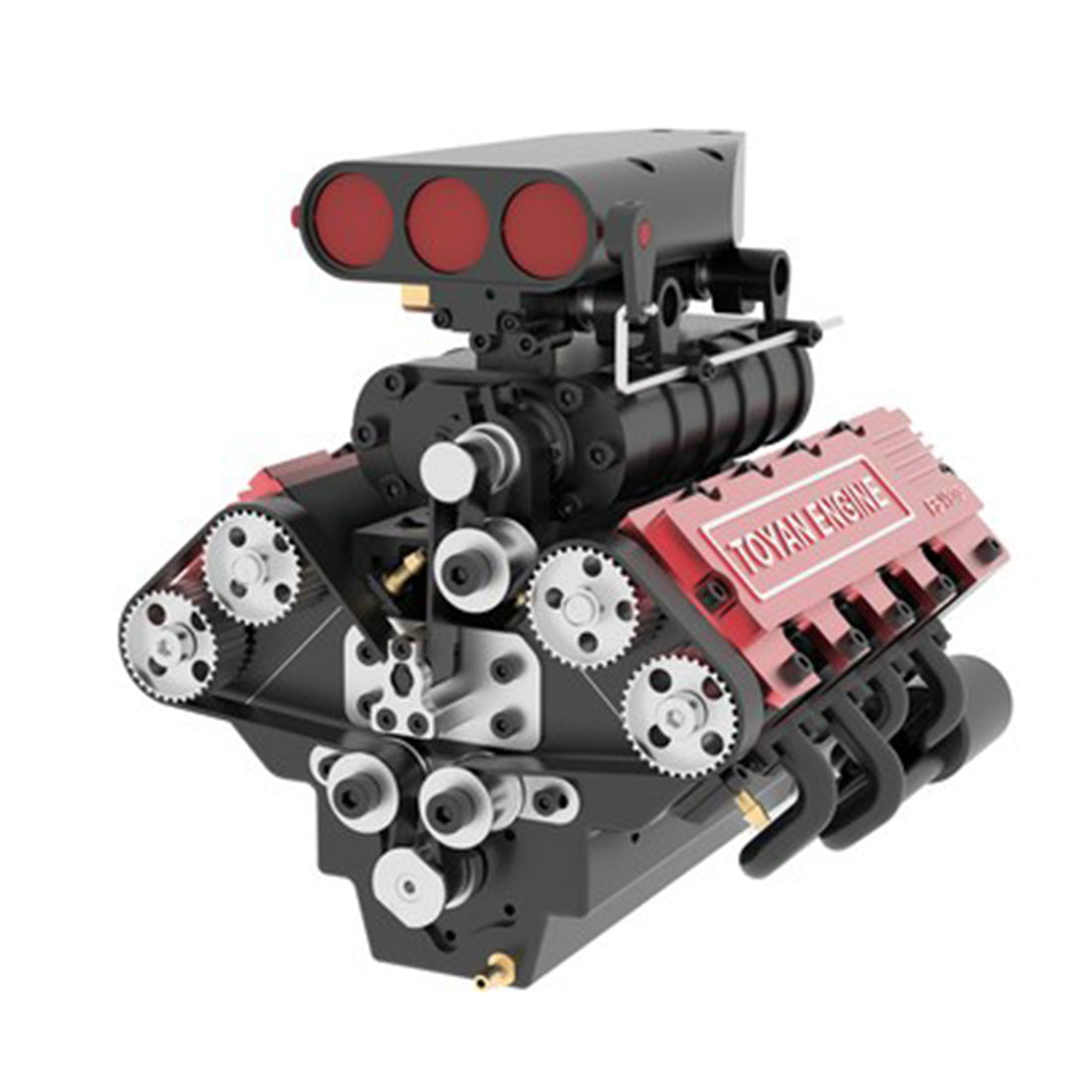

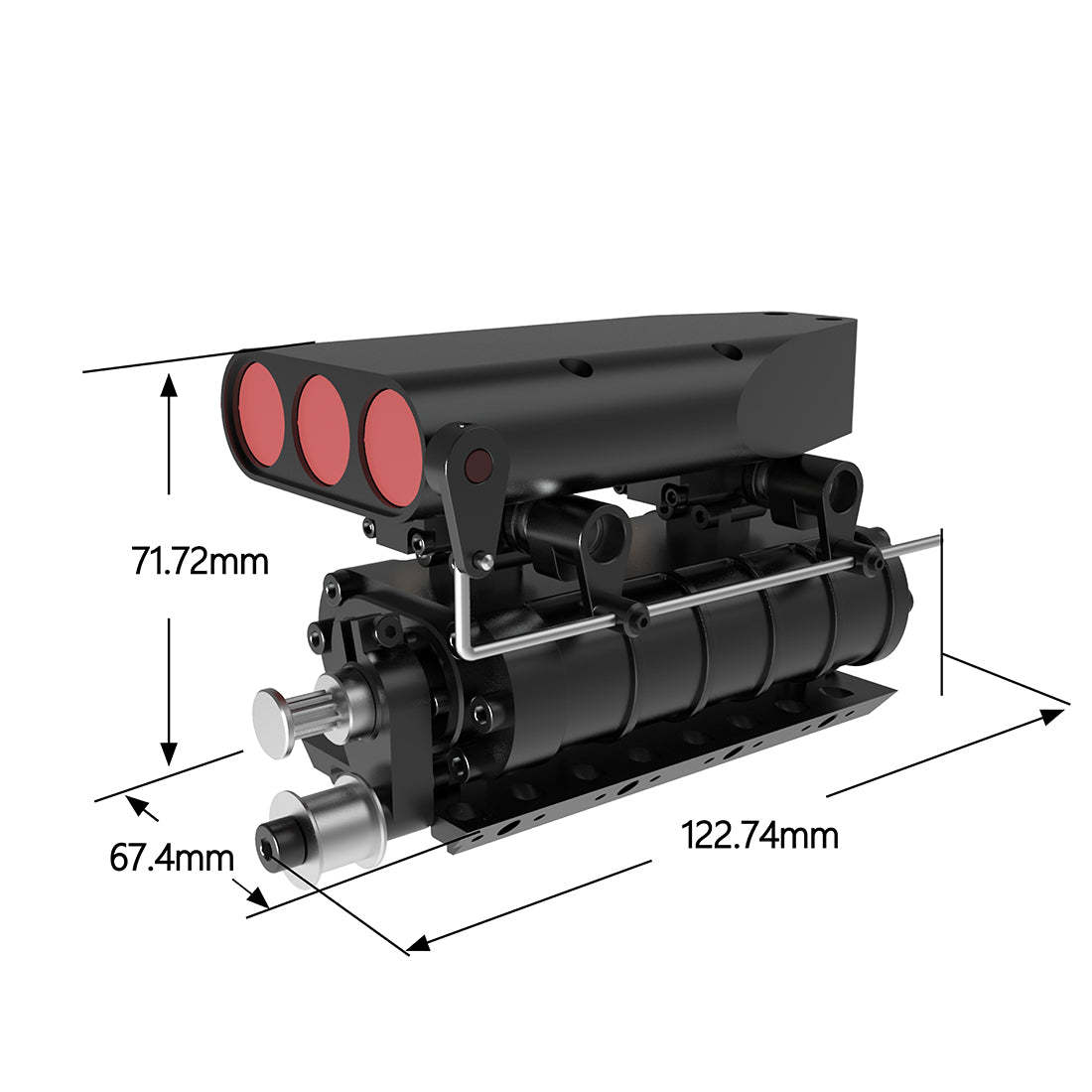

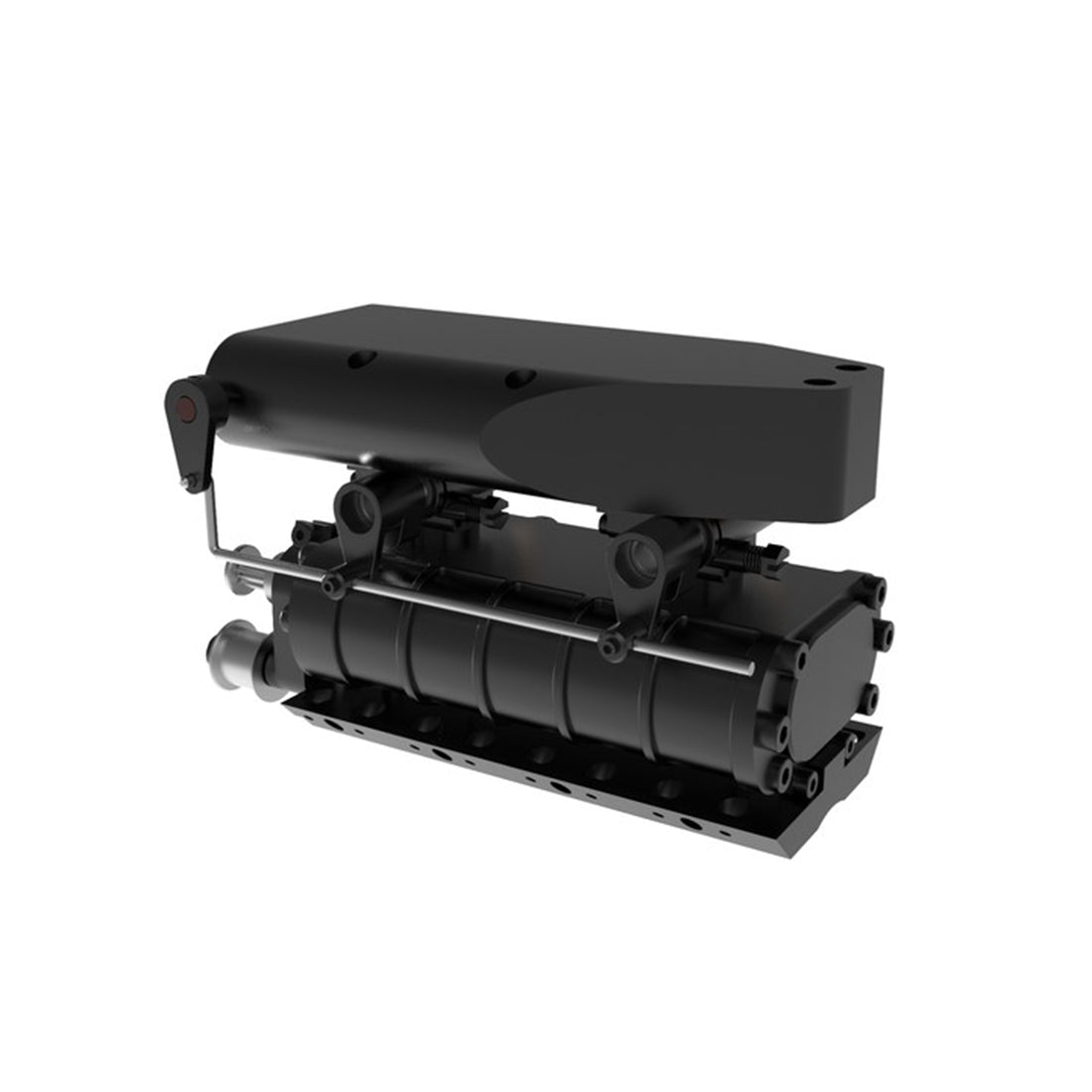

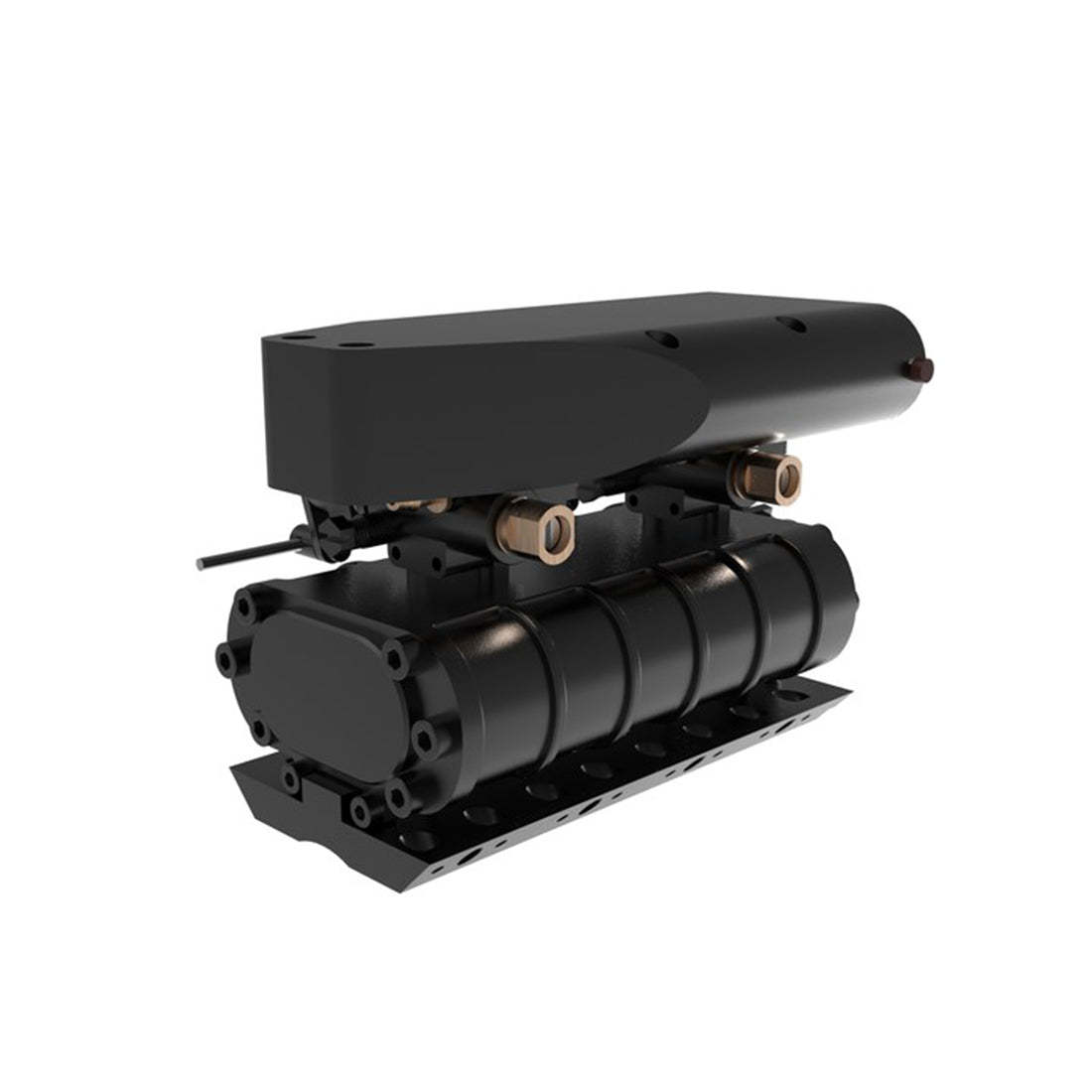

. Supercharger
